Ever tried to set up a jig or fixture? The process may feel a bit complicated if you’re new to this. In fact, figuring out where to start, and how to do it right, can be tricky if you’re not sure what makes these tools different in the first place.

What are precision jig and fixture devices? These are tools used in manufacturing to make CNC parts faster with better accuracy. A jig holds the workpiece and also guides the cutting tool, like in drilling. A fixture holds the workpiece steady but doesn’t guide the tool.

In this article, we’ll break down the installation and setup processes of jigs vs fixtures. You’ll learn how each one works, what makes their setups unique, and how they are different from each other.

Simplifying the Installation and Setup of Jigs and Fixtures

Installation of jigs and fixtures doesn’t have to be complicated. With a few smart choices, you can reduce errors and save time.

The first thing you can do is to use fast clamping systems, such as toggle clamps or hydraulic setups, which lock parts in place quickly. This cuts down setup time and keeps work moving. And you can use adjustable locating pins to line things up properly. You can also move these pins when needed for different parts.

It also helps to leave room for chips and coolant to escape. If the jig or fixture is hard to clean or clogs easily, it’ll slow everything down. Good handle placement and proper clamp positioning also go a long way in making setup safer and smoother.

And don’t forget to test your setup before starting real work. A dry run can help catch little issues before they become big problems.

Installation Process of Jigs

Installing a jig the right way is super important if you want your cuts and holes to be spot-on every time. A good setup helps you avoid mistakes and saves a ton of time.

Let’s break down what tools you’ll need and how to get your jig in place.

A. Tools Required for Jig Installation

Before you start, gather all your tools so you’re not scrambling in the middle of the job. You’ll need a drill and some bits to make the right holes for screws or bolts. A screwdriver, or an impact driver (a better option), makes it easier to tighten things quickly. Keep a measuring tape and a pencil close by so you can mark exactly where the jig should go.

You’ll also want clamps to hold everything steady while you work. A level helps make sure the jig isn’t tilted or off-center. And don’t forget your safety gear. Put on safety glasses and ear protection to keep yourself safe while drilling.

A list of the possible tools are:

• Drill and drill bits
• Clamps
• Level
• Screwdriver (or impact driver)
• Measuring tape and marking tool
• Safety gear​

B. Step-by-Step Jig Installation Guide

Here’s a brief step-by-step guide to the installation of jigs:

1. Prepare the workspace

Dust and leftover chips can throw off your alignment, so clean your workspace. And take a few minutes to read through any instructions that came with the jig. Some jigs have unique parts or steps, so it’s good to double-check before you begin.

2. Mark the spot

Figure out exactly where the jig needs to go based on your project. Use your tape measure to find the right distance and mark it clearly with a pencil. The more precise you are now, the better your results will be later.

3. Line it up

Place the jig on the marks you made. Hold it in place with clamps so it won’t slide around. Grab the level and make sure the jig is perfectly straight. If the jig is misaligned, it can cause angled holes or uneven cuts.

4. Drill pilot holes

Pick the drill bit that matches your hardware size. Drill pilot holes through the jig’s guide holes and into your workpiece. These holes keep the screws from splitting the material and help everything line up better.

5. Add screws

Insert your screws into the pilot holes. Then, use your driver to tighten them securely. Don’t over-tighten because you want it snug, not stripped.

6. Final checks

Remove the clamps and lift the jig carefully off the workpiece. Give everything a once-over. If the hardware feels tight and sits right where you planned, the installation is complete.

If you find setting up this device too complicated, contact CNC shops near me to get the CNC machining service you need.

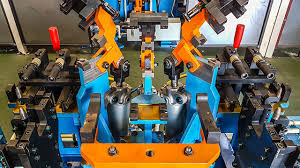

Setting up Fixtures

Comparing jigs vs fixtures, both can ruin the accuracy of CNC machined parts if not mounted or aligned properly. So, let’s have a look at the setup of fixtures in two simple parts: mounting and alignment.

A. Fixture Mounting: Step-by-Step Guide

Here’s a guideline to how to mount the fixture in your workshop:

1. Prepare the installation area

Wipe down the surface where the fixture will go. Dirt, chips, or dust can throw things off. Then, give the fixture itself a quick check. Look for any worn-out or damaged parts before moving forward.

2. Place and lock the fixture

Position the fixture to its designated place. If it has guide marks or dowel pins, use those to line it up right the first time.

Use the right bolts or screws to fasten the fixture down. A torque wrench helps make sure you’re not over-tightening or leaving things too loose. This keeps the fixture stable during CNC precision machining.

B. Alignment and Calibration of Fixtures

Once the fixture is mounted, it’s time to check for any small shifts or misalignment. So, in this section, we’ll focus on how to align and calibrate the fixtures.

1. Fine-tuning the alignment

A dial indicator can help with the alignment. Just place it on a reference point and move the fixture slowly to spot any uneven spots. If you’re working with more complex machining parts, a laser alignment tool can give you even more accuracy.

2. Calibrating for accuracy

Grab your calibration blocks or whatever reference tools match your fixture’s specifications. Take measurements across different areas to check for any inconsistencies. If something looks off, tweak the fixture’s components until everything lines up the way it should.

Once adjustments are made, recheck your measurements to confirm that the fixture is now accurate and ready for use.

Comparing Installation and Setup Complexity

The set up process of jigs vs fixtures might seem similar at first glance, but they each come with their own set of challenges. Let’s break down the main differences when it comes to installation and setup.

A. Ease of Installation: Jigs vs Fixtures

Jigs are built for ease. They’re usually small, easy to carry, and don’t take much effort to set up. Most jigs come with guide holes or bushings already in place, which makes tool alignment easy. Since they hold and guide the tool directly, they don’t need complicated clamping systems. Even someone with little experience can install a jig and get to work pretty fast.

Fixtures, on the other hand, are designed to hold parts still during the machining process. That means they’re built for stability, and often heavy. They need solid clamping systems to keep everything locked in place. Aligning them just right takes time and accuracy. Because of their complexity, setup usually requires someone who knows their way around a shop.

B. Time-Consuming Aspects of Setup for Each

One big advantage of jigs is speed. Their simple design means you can position and secure them in no time. Since there’s not much to adjust, you’re ready to start machining almost right away. This makes jigs great for quick jobs or when you’re working with repeat tasks and don’t want a lot of downtime.

Fixtures take more effort to set up properly. First, you have to line them up perfectly with the machine and the part. Then, you need to install the right clamps and double-check everything. Some fixtures even need calibration to make sure they meet tight tolerances. All of this takes time, but it’s worth it when you need top-level precision and stability.

Here’s a short comparison table for your quick reference:

Aspect	Jigs	Fixtures
Weight	Lightweight	Heavy and robust
Design Complexity	Simple	Complex
Clamping Mechanism	Minimal	Intricate
Alignment	Basic	Precise
Setup Time	Short	Longer
Skill Requirement	Low	High

Conclusion

Setting up jigs and fixtures doesn’t have to be a headache. Once you understand their differences and follow a few smart steps, the process becomes much smoother. Jigs save time and are quick to install, while fixtures take longer but offer rock-solid precision. Both tools play a major role in getting accurate CNC machining results. Need custom jigs or fixtures for your next machining project? Zintilon designs and manufactures precision parts built for speed and accuracy. Get in touch to find more details about the service we can provide.
